Direct connection

On this page

In this article, you will learn how to connect CluedIn to on-premises Master Data Services (MDS) directly over HTTPS. MDS only accepts Windows (NTLM/Negotiate) authentication by default, which is not supported from CluedIn’s Linux-based crawler containers, so a dedicated Basic authentication endpoint is exposed instead. Use this approach if CluedIn has a routable network path to your on-premises MDS server - if it doesn’t, see Azure Relay instead.

Prerequisites:

  • Administrator access to your on-premises MDS server, for a one-time reconfiguration.

  • A routable network path from CluedIn to the MDS server (for example, an appropriate firewall rule or VPN).

Configure the MDS web.config

  1. Using IIS, locate the physical path for the MDS website. The default location for SQL Server 2019 Master Data Services is C:\Program Files\Microsoft SQL Server\150\Master Data Services\WebApplication.

  2. Make the following modifications to the web.config file in the previously located path.

Add the following binding to system.serviceModel/bindings.

<basicHttpBinding>
   <binding name="mdsCluedInBasicHttpBinding">
       <security mode="Transport">
           <transport clientCredentialType="Basic" />
       </security>
   </binding>
</basicHttpBinding>

Add the following to the system.serviceModel/services/service node whose name attribute matches your MDS service, alongside any existing endpoints.

<endpoint address="cluedin"
         binding="basicHttpBinding"
         bindingConfiguration="mdsCluedInBasicHttpBinding"
         contract="Microsoft.MasterDataServices.Services.ServiceContracts.IService" />

  1. Recycle the application pool so the configuration changes take effect.

    If you browse to service.svc before recycling, you may see a Yellow Screen of Death (an ASP.NET error page) rather than the expected service page. This is expected immediately after editing web.config - recycling the application pool (not a full iisreset) resolves it.

Enable Basic Authentication in IIS

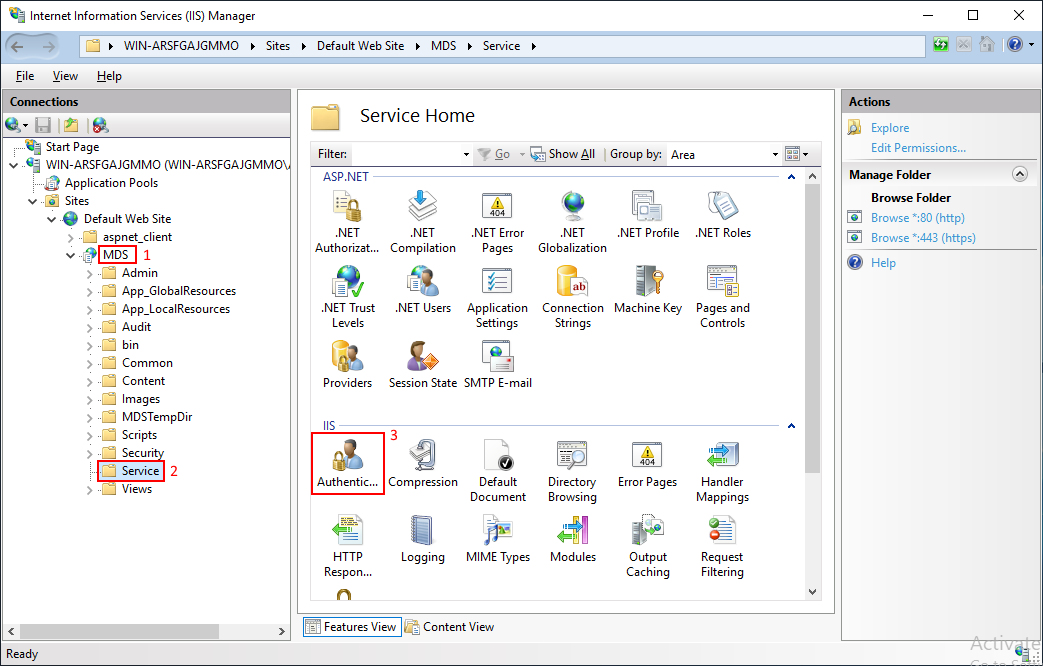

  1. In IIS Manager, expand Sites > Default Web Site > MDS, and select the Service folder - the same one that contains service.svc. Then, open the Authentication feature.

    The screenshots below show MDS installed as an application under Default Web Site. If your MDS is installed as its own site instead, the path in the tree will start directly from Sites > MDS - the steps are otherwise the same.

    Basic Authentication must be enabled on this Service folder specifically. In many installs it’s configured as its own IIS Application, with its own authentication settings that don’t automatically inherit from the parent MDS node - enabling it on MDS alone is not enough.

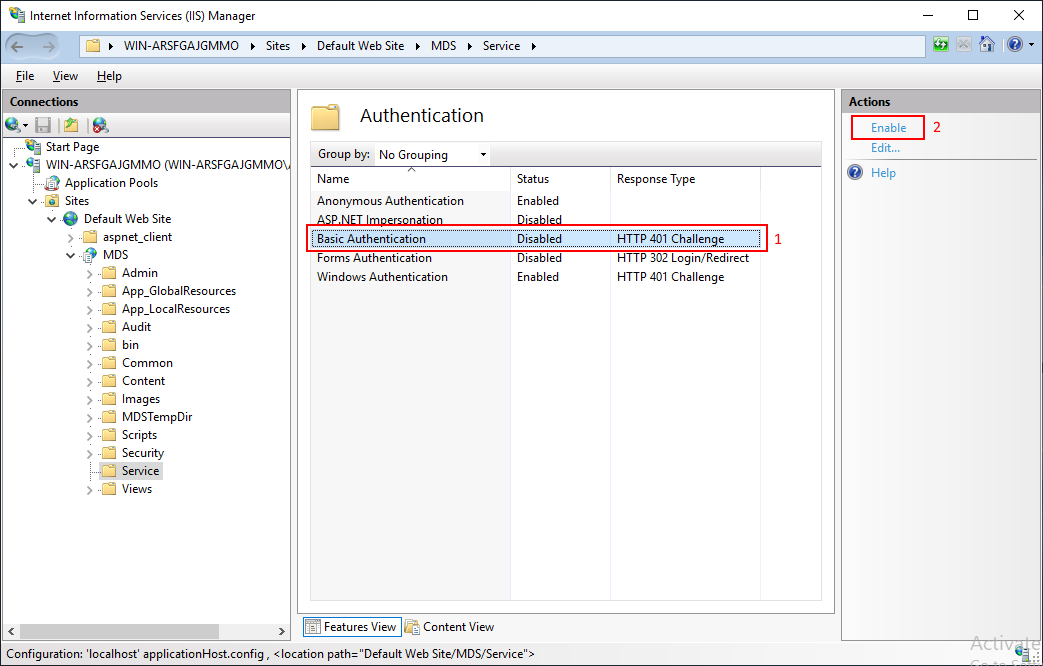

  2. Select Basic Authentication, and then select Enable. Leave Windows Authentication enabled too, for any existing domain-joined clients that already work.


    If Basic Authentication is greyed out, the role feature may not be installed - add it from Server Manager under Web Server (IIS) > Web Server > Security > Basic Authentication.

    If the setting cannot be saved from IIS Manager because it’s locked at the server level, it can instead be set from an elevated command prompt:

     appcmd.exe set config "Default Web Site/MDS/service" -section:system.webServer/security/authentication/basicAuthentication /enabled:"True" /commit:apphost

    Adjust the site/path to match your IIS setup.

  3. Recycle the application pool so the configuration changes take effect.

Verify configuration

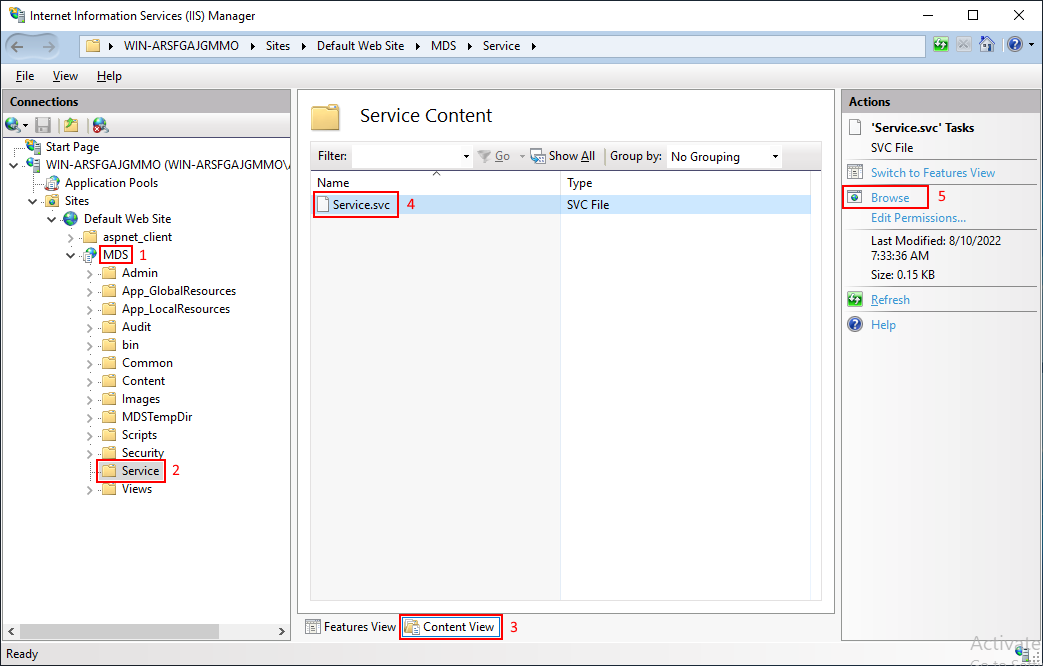

  1. Verify the configuration by loading the service endpoint. For this, perform the sequence of steps as displayed on the following screenshot.


    As a result, you will see the screenshot similar to the following.


  2. Browse to the new endpoint address, for example:

     https://yourmdsserver/MDS/service/service.svc/cluedin

  3. You should be prompted for credentials, or receive a 401 Basic authentication challenge, rather than a Windows/NTLM negotiation error.

In CluedIn

When adding the MDS crawler in CluedIn, check Configuring MDS for CluedIn to confirm you’re using this direct connection method, and set:

  • MDS Url to the new endpoint, for example https://yourmdsserver/MDS/service/service.svc/cluedin. This must be HTTPS - Basic authentication sends credentials in a way that is only safe over an encrypted connection.

  • Username/Password to the same domain\username and password you would normally use to log in to MDS.
