Ingesting data to CluedIn with Python

In this article, we will explore how to ingest data to CluedIn Ingestion Endpoints with Python. We will use Databricks as a data source and CluedIn as a destination. The same approach can be used with any other data source like Microsoft Fabric, Azure Synapse Analytics, Snowflake, or any other data source that can run Python code.

Let’s start with a simple example. We have a table named imdb_titles in Databricks with 601_222 rows:

Databricks catalog

CluedIn

Load this data to CluedIn. To do this, we need to create an API token in CluedIn. Go to Administration > API Tokens and create a new token.

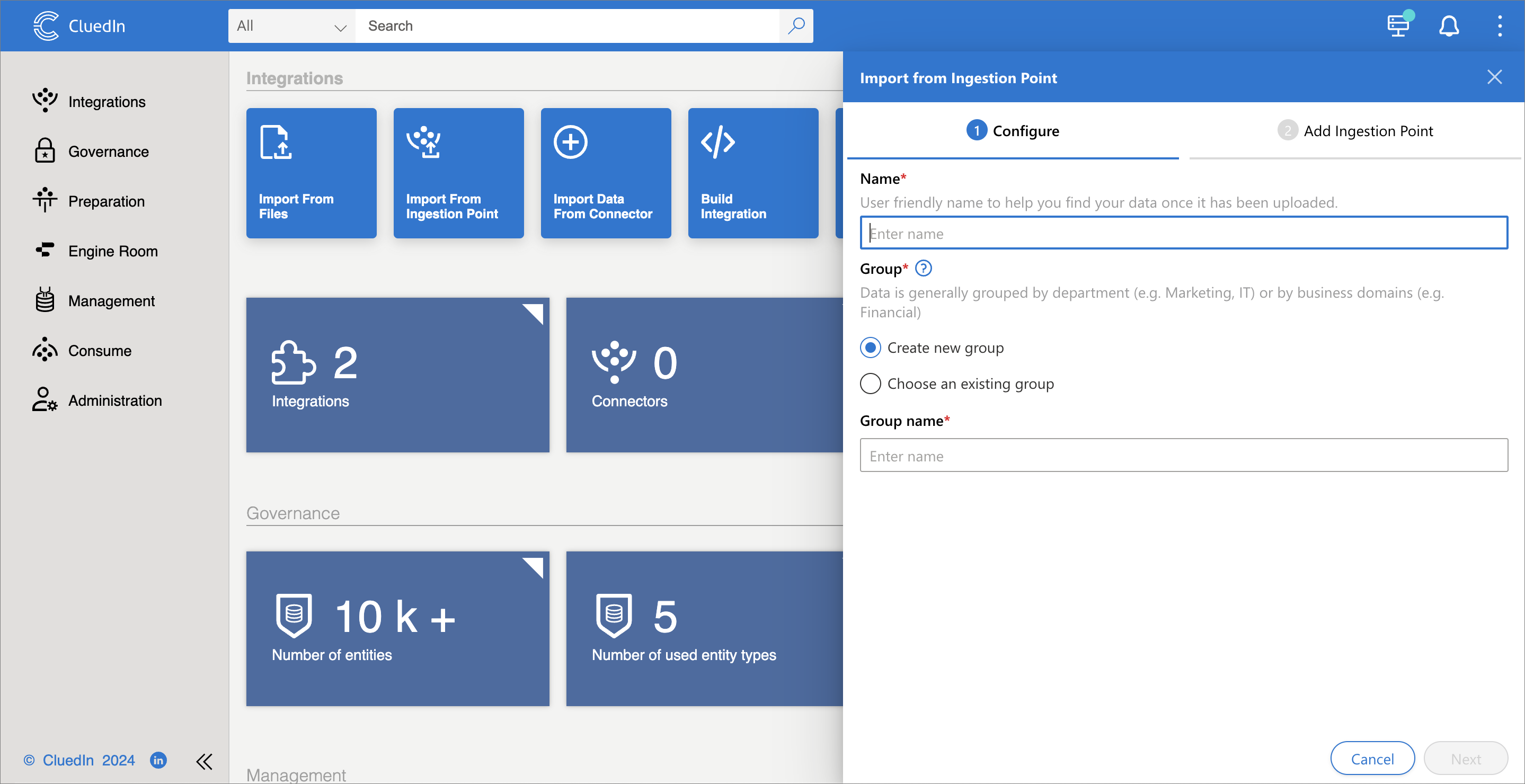

Create an endpoint in CluedIn. From CluedIn’s main page, select Import From Ingestion Endpoint and create a new endpoint. You will need to enter the endpoint’s name, group name, and select a business domain (previously called entity type).

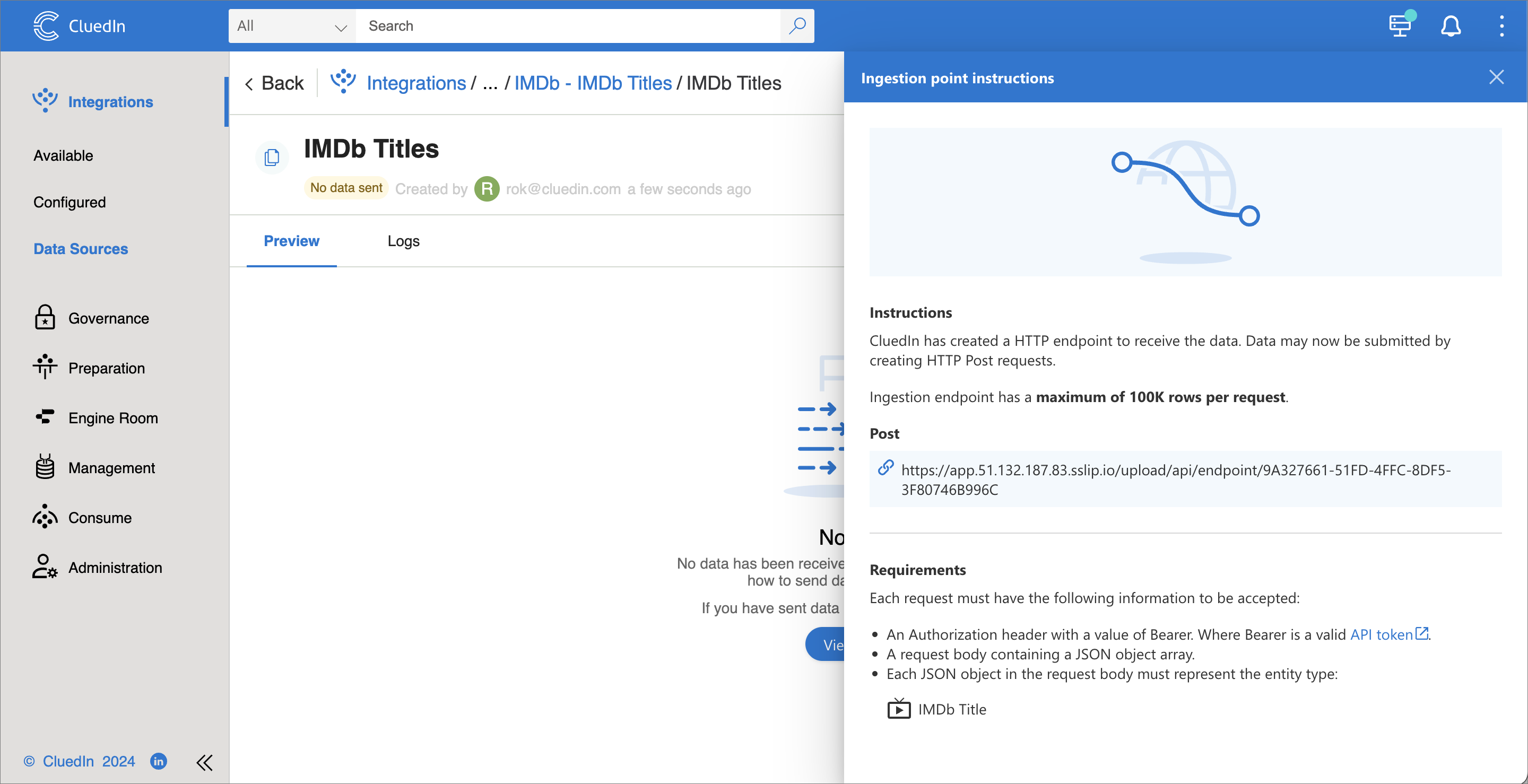

After you create the endpoint, you will find its URL in the View Instructions section.

We are ready to load data to CluedIn. Now it’s time to set up Databricks.

Databricks

In Databricks, we create a Jupyter notebook and install the cluedin library.
```
 %pip install cluedin
```

Import the cluedin library and create a CluedIn context object.

 import requests
 import cluedin

 ctx = cluedin.Context.from_dict(
     {
         "domain": "51.132.187.83.sslip.io",
         "org_name": "foobar",
         "access_token": "(your token)",
     }
 )

 ENDPOINT_URL = "https://app.51.132.187.83.sslip.io/upload/api/endpoint/9A327661-51FD-4FFC-8DF5-3F80746B996C"
 DELAY_SECONDS = 5
 BATCH_SIZE = 100_000

In our example, the URL of our CluedIn instance is https://foobar.51.132.187.83.sslip.io/, so the domain is 51.132.187.83.sslip.io and the organization name is foobar. The access token is the one we created earlier.

Pull data from Databricks and post it to CluedIn.

Here is a simple method to select all rows from a table and yield them one by one:

 from pyspark.sql import SparkSession

 def get_rows():
     spark = SparkSession.builder.getOrCreate()

     imdb_names_df = spark.sql("SELECT * FROM hive_metastore.cluedin.imdb_titles")

     for row in imdb_names_df.collect():
         yield row.asDict()

Create a method that posts a batch of rows to CluedIn.

 import time
 from datetime import timedelta

 def post_batch(ctx, batch):
     response = requests.post(
         url=ENDPOINT_URL,
         json=batch,
         headers={"Authorization": f"Bearer {ctx.access_token}"},
         timeout=60,
     )
     time.sleep(DELAY_SECONDS)
     return response

 def print_response(start, iteration_start, response) -> None:
     time_from_start = timedelta(seconds=time.time() - start)
     time_from_iteration_start = timedelta(
         seconds=time.time() - iteration_start)
     time_stamp = f'{time_from_start} {time_from_iteration_start}'
     print(f'{time_stamp}: {response.status_code} {response.json()}\n')

print_response is a helper method that prints the response status code and the response body.

Iterate over the rows and post them to CluedIn. Note that:

We are posting the rows in batches of BATCH_SIZE rows.
DELAY_SECONDS is the number of seconds to wait between batches.

However, we will need to post a small batch of rows first to set up mapping on the CluedIn side. We will post ten rows. To do that, we will add the following lines in the code below.

     if i >= 10:
     break

Here is the code that posts the rows to CluedIn:

 batch = []
 batch_count = 0

 start = time.time()
 iteration_start = start

 for i, row in enumerate(get_rows()):

     if i >= 10:
         break

     batch.append(row)

     if len(batch) >= BATCH_SIZE:
         batch_count += 1
         print(f'posting batch #{batch_count:_} ({len(batch):_} rows)')
         response = post_batch(ctx, batch)
         print_response(start, iteration_start, response)

         iteration_start = time.time()
         batch = []

 if len(batch) > 0:
     batch_count += 1
     print(f'posting batch #{batch_count:_} ({len(batch):_} rows)')
     response = post_batch(ctx, batch)
     print_response(start, iteration_start, response)

     iteration_start = time.time()

 print(f'posted {(i + 1):_} rows')

After we run the code, we will see ten rows in CluedIn.

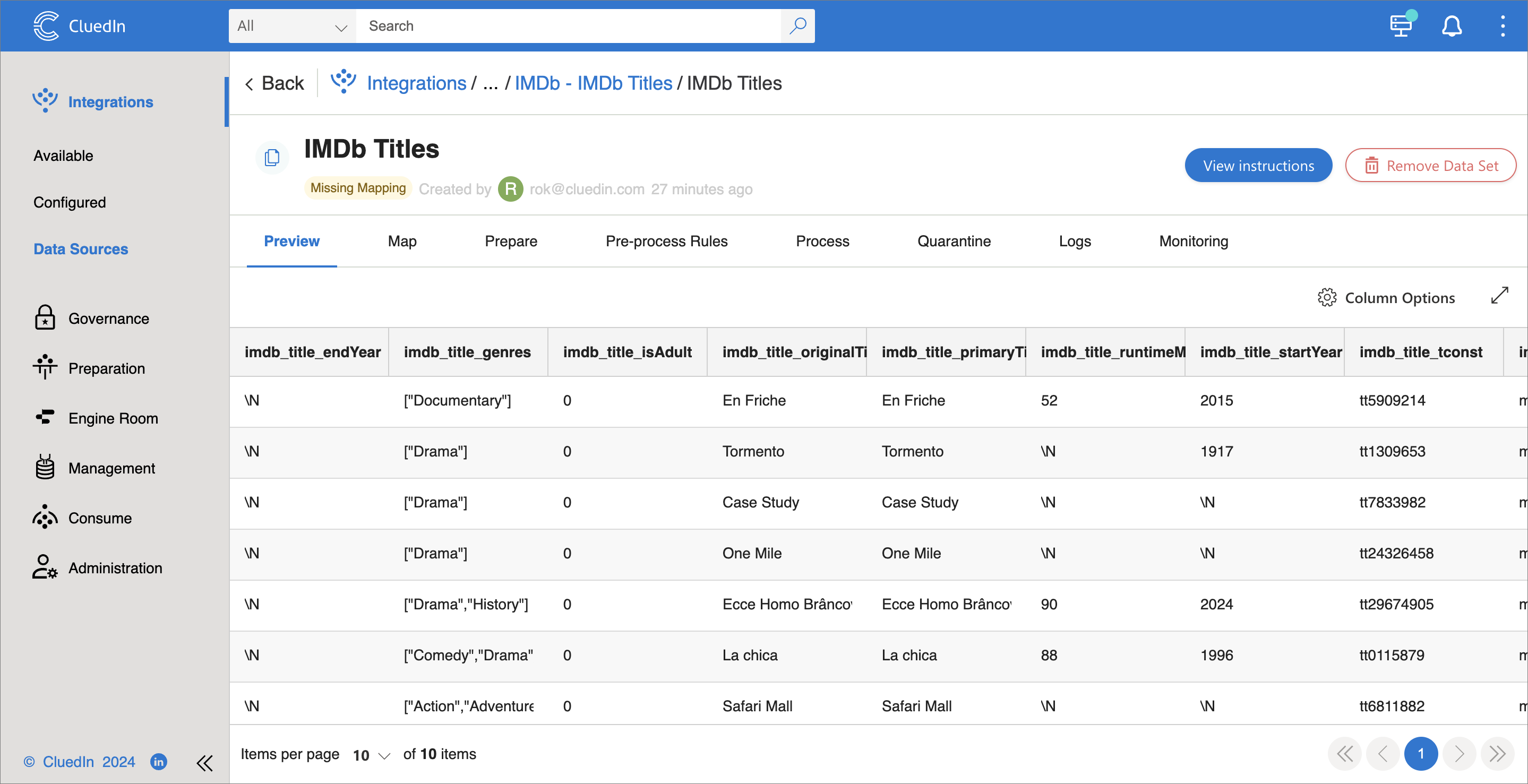

Ingestion Endpoint Preview

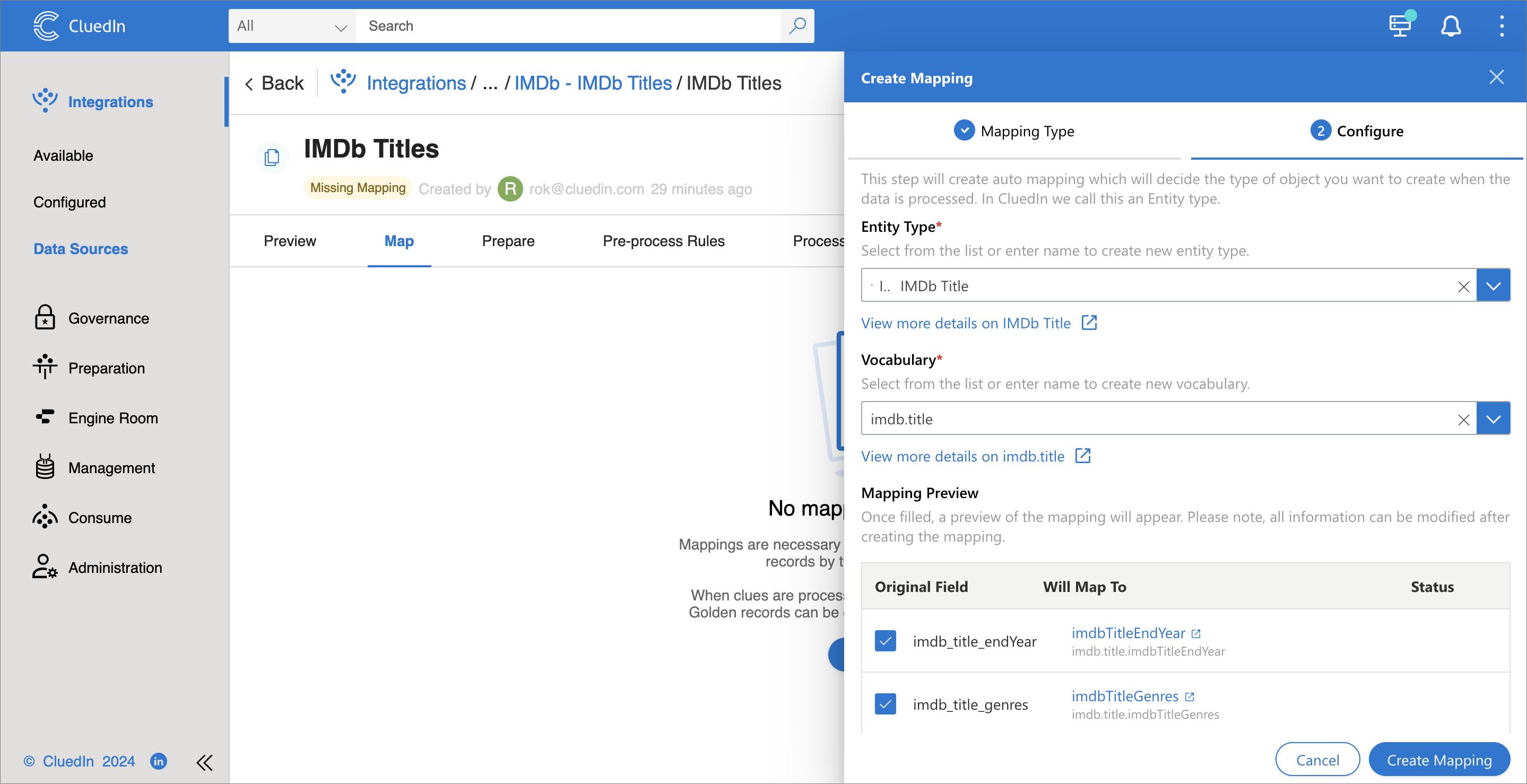

On the Map tab, create an automatic mapping:
1. Select Add Mapping.
2. Select Auto Mapping, and then select Next.
3. Ensure the business domain is selected or enter a new business domain name. Then, select Create.
4. Enter a new vocabulary name, such as imdb.title, and then select Create.
5. Select Create Mapping.
6. Select Edit Mapping.

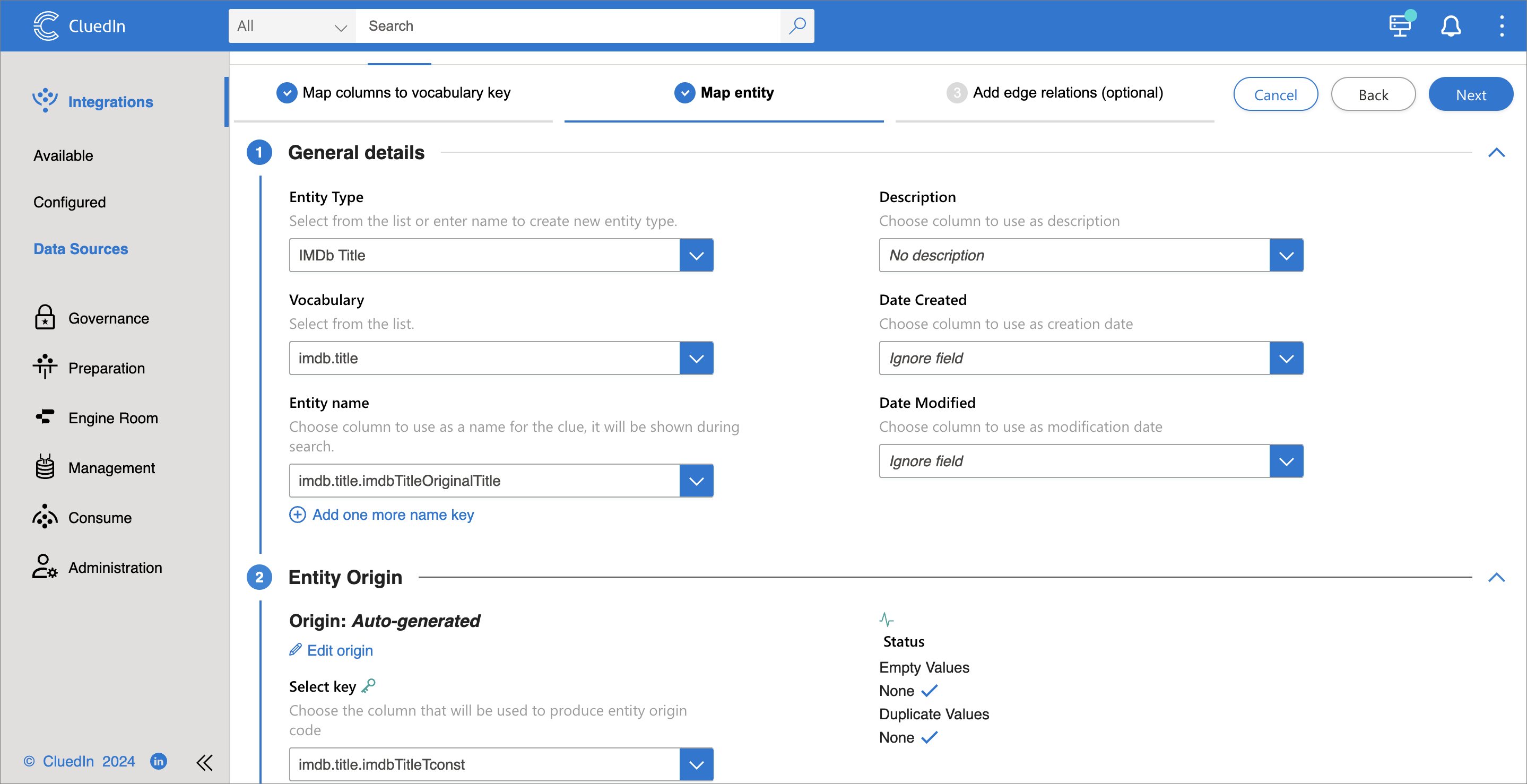

7. On the Map Entity tab, select the property used as the entity name and the property used for the origin entity code:
8. Select Next, and then select Finish.
9. On the Process tab, enable Auto submission, and then select Switch to Bridge Mode.

After you complete the previous step, you can remove or comment on these lines in the notebook and rerun it:

    if i >= 10:
        break

All table rows will be posted to CluedIn. The output in the notebook will look like this:

0:00:13.398879 0:00:13.398889: 200 {'success': True, 'warning': False, 'error': False}

posting batch #2 (100_000 rows)
0:00:22.021498 0:00:08.622231: 200 {'success': True, 'warning': False, 'error': False}

posting batch #3 (100_000 rows)
0:00:30.709844 0:00:08.687518: 200 {'success': True, 'warning': False, 'error': False}

posting batch #4 (100_000 rows)
0:00:40.026708 0:00:09.316675: 200 {'success': True, 'warning': False, 'error': False}

posting batch #5 (100_000 rows)
0:00:48.530380 0:00:08.503460: 200 {'success': True, 'warning': False, 'error': False}

posting batch #6 (100_000 rows)
0:00:57.116517 0:00:08.585930: 200 {'success': True, 'warning': False, 'error': False}

posting batch #7 (1_222 rows)
0:01:02.769714 0:00:05.652984: 200 {'success': True, 'warning': False, 'error': False}

posted 601_222 rows

Give CluedIn some time to process the data, and you should see 601_222 rows in CluedIn.

The same approach works not only with Databricks but also with any other data source. You must change the get_rows method to pull data from your source.
