Data factory pipeline run schedule

On this page

Use this setting to automate when your pipeline runs by entering a single schedule string in the textbox next to the toggle. This feature supports both Azure Data Factory and Microsoft Fabric–compatible scheduling formats.

You can define the following:

  • Cadence – how often the pipeline runs (minutely, hourly, daily, weekly, or monthly).

  • Timing – specific days or times within that cadence.

  • Optional boundaries – start and end times, and time zone.

If a parameter is omitted, CluedIn applies sensible defaults (see the tables below for details).

You will paste one of the strings below into the textbox next to your toggle.


TL;DR – Quick examples

Minutely:Interval=15
Hourly:Interval=2
Daily:Interval=1&Hours=[0,12,18]&Minutes=[0,30]
Weekly:Interval=1&WeekDays=[1,3,5]&Hours=[8,16]&Minutes=[0,45]
Monthly:Interval=1&MonthDays=[1,15,-1]&Hours=[9,21]&Minutes=[15,45]

These settings work as follows:

  • Minutely:Interval=15 – runs the pipeline every 15 minutes.
  • Hourly:Interval=2 – runs the pipeline every 2 hours.
  • Daily:Interval=1&Hours=[0,12,18]&Minutes=[0,30] – runs the pipeline daily at 00:00, 00:30, 12:00, 12:30, 18:00, and 18:30.
  • Weekly:Interval=1&WeekDays=[1,3,5]&Hours=[8,16]&Minutes=[0,45] – runs the pipeline weekly on Monday, Wednesday, and Friday at 08:00, 08:45, 16:00, and 16:45.
  • Monthly:Interval=1&MonthDays=[1,15,-1]&Hours=[9,21]&Minutes=[15,45] – runs the pipeline monthly on the 1st and 15th, as well as at the end of month at 09:15, 09:45, 21:15, and 21:45.

MonthDays=[-1] (end of month (EOM)) is supported only in Azure. If you also target Fabric, use explicit day values (for example, compute the EOM externally and pass 1–31 only).

Syntax

<Frequency>:<Key>=<Value>[&<Key>=<Value>...]
  • Frequency – The value must be one of the following: Minutely | Hourly | Daily | Weekly | Monthly.
  • Key and Value pairs – Must be separated by &.
  • Arrays – Must be enclosed in brackets and comma-separated (for example, [1,3,5]).
  • Times – Can be specified using the Hours and Minutes arrays.
  • Optional bounds: StartDateTime, EndDateTime.
  • Optional parameters: TimeZone.

Formal grammar (EBNF style)

schedule     = frequency ":" params ;
frequency    = "Minutely" | "Hourly" | "Daily" | "Weekly" | "Monthly" ;
params       = pair | pair "&" params ;
pair         = key "=" value ;
key          = "Interval" | "WeekDays" | "MonthDays" | "Hours" | "Minutes"
             | "StartDateTime" | "EndDateTime" | "TimeZone" ;
value        = integer | array | datetime | string ;
array        = "[" elements "]" ;
elements     = integer | integer "," elements ;
integer      = "-"? DIGITS ;
datetime     = DATE | DATE "T" TIME ;      // e.g., 10-08-2025 or 10-08-2025T14:30
DATE         = "MM-DD-YYYY" ;              // DateFormat = MM-dd-yyyy
TIME         = "HH:MM" ;                   // TimeFormat = HH:mm (24-hour clock)

Frequencies and allowed parameters

Minutely

  • Keys: Interval, StartDateTime, EndDateTime, TimeZone
  • Limits:
    • Azure: Interval = 1–720000
    • Fabric: Interval = 1–720

Hourly

  • Keys: Interval, StartDateTime, EndDateTime, TimeZone
  • Limits:
    • Azure: Interval = 1–12000
    • Fabric: Interval = 1–72

Daily

  • Keys: Interval, Hours, Minutes, StartDateTime, EndDateTime, TimeZone
  • Limits:
    • Azure: Interval = 1–500
    • Fabric: Interval is not supported
    • Hours = 0–23, Minutes = 0–59

Weekly

  • Keys: Interval, WeekDays, Hours, Minutes, StartDateTime, EndDateTime, TimeZone
  • Limits:
    • Azure: Interval = 1–71
    • Fabric: Interval is not supported
    • WeekDays = [1–7], where 1=Mon … 7=Sun
    • Hours = 0–23, Minutes = 0–59

Monthly

  • Keys: Interval, MonthDays, Hours, Minutes, StartDateTime, EndDateTime, TimeZone
  • Limits:
    • Azure: Interval = 1–16
    • Fabric: Interval = 1–12
    • Azure MonthDays: 1–31, -1 for end of month
    • Fabric MonthDay*: 1–31 (no -1)
    • Hours = 0–23, Minutes = 0–59

Parameter keys and default values

Key Type Meaning Default value if omitted
Interval Integer Frequency step (for example, every N minutes/hours/days/weeks/months) 1
WeekDays Int[] Days of week (1=Mon … 7=Sun) for Weekly Current day of week (1–7)
MonthDays Int[] Days of month (1–31, and -1 for end of month (EOM) in Azure) for Monthly Today’s day of month
Hours Int[] Hours in a 24-hour clock (0–23) Current hour
Minutes Int[] Minutes (0–59) Current minute
StartDateTime Date/time MM-dd-yyyy or MM-dd-yyyyTHH:mm Current date/time
EndDateTime Date/time Upper bound for firing Minutely/hourly: end of day
Daily/weekly: end of month
Monthly: end of year
TimeZone String IANA/Windows time zone ID (for example, Asia/Manila, Pacific Standard Time) Current system time zone

If you provide Hours without Minutes, the current minute is used. The same is true for Minutes without Hours.

Date/time and time zone details

  • Date format – MM-dd-yyyy (for example, 10-08-2025).
  • Time format – HH:mm (for example, 14:30).
  • StartDateTime and EndDateTime accept MM-dd-yyyy or MM-dd-yyyyTHH:mm.
  • Time zone – If omitted, your server’s or application’s current time zone is assumed.
  • Bounds behavior – Triggers occur on or after StartDateTime and before or on EndDateTime (inclusive end varies by implementation, refer to the list of default values).

Examples:

Daily:Interval=1&Hours=[6,18]&Minutes=[0]&StartDateTime=10-01-2025T06:00&TimeZone=Asia/Manila
Weekly:Interval=2&WeekDays=[2]&Hours=[9]&Minutes=[30]&EndDateTime=12-31-2025
Monthly:Interval=1&MonthDays=[-1]&Hours=[23]&Minutes=[59]&TimeZone=UTC

Platform differences (Azure and Fabric)

Some ranges differ by platform:

  • Interval (minutely): 1–720000 in Azure, 1–720 in Fabric.
  • Interval (hourly): 1–12000 in Azure, 1–72 in Fabric.
  • Interval (monthly): 1–16 in Azure, 1–12 in Fabric.
  • End of month (-1): Azure only for MonthDays.

If you target both platforms, avoid MonthDays=-1 and use explicit end-of-month dates wherever possible (for example, compute 28–31 externally).

How combinations work

  • Daily, weekly, and monthly intervals execute at the Cartesian combinations of Hours × Minutes.

    For example, Hours=[8,16] and Minutes=[0,45] runs at 08:00, 08:45, 16:00, 16:45.

  • Weekly schedules use WeekDays × Hours × Minutes.

  • Monthly schedules use MonthDays × Hours × Minutes.

  • If a specified day does not exist in a given month (for example, 31 in February), the run is skipped for that date.

Validation checklist

  • Frequency is set to one of the five supported values.
  • ✅ Numeric ranges fit the target platform (Azure or Fabric).
  • ✅ Arrays are enclosed in brackets and comma-separated, without spaces (for example, [1,3,5]).
  • ✅ No unsupported values (for example, MonthDays=-1 and Interval for Daily and Weekly on Fabric).
  • StartDateTime is less than or equal to EndDateTime, if both are provided.
  • TimeZone is a valid identifier (for example, Asia/Manila, UTC, or Pacific Standard Time).

Extended examples

  • Every 10 minutes from now until the end of the day.
      Minutely:Interval=10

  • Every 4 hours between two dates in UTC.
      Hourly:Interval=4&StartDateTime=10-08-2025T00:00&EndDateTime=10-15-2025T23:59&TimeZone=UTC

  • Daily at 07:30 only.
      Daily:Hours=[7]&Minutes=[30]

  • Weekly on weekends at the top of the hour.
      Weekly:WeekDays=[6,7]&Minutes=[0]

  • Monthly on the 1st, 15th, and 30th at 09:00 and 18:00.
      Monthly:MonthDays=[1,15,30]&Hours=[9,18]&Minutes=[0]

  • (Azure only) Monthly on the last day of the month at 23:59.
      Monthly:MonthDays=[-1]&Hours=[23]&Minutes=[59]


FAQ

Q: What happens if I omit Hours and Minutes for daily, weekly, or monthly schedules?
A: They default to the current hour and minute at the time you enable or save the schedule.

Q: How are StartDateTime and EndDateTime interpreted?
A: They define the active window during which the schedule can run, based on the specified (or default) TimeZone.

Q: Can I specify seconds?
A: No. Seconds are not supported in the current format. Use HH:mm for time values and, if needed, schedule more frequent runs instead.

Verification

Use the following checklist to verify end-to-end behavior.

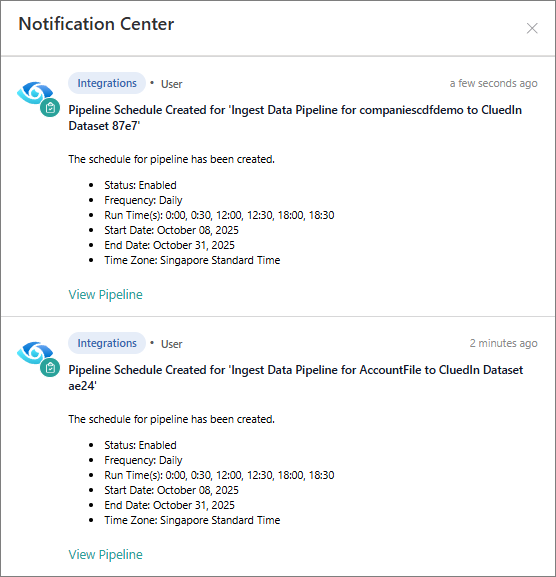

  1. CluedIn – Notification about schedule being created.
    • What to capture: The in-app notification (toast) confirming that the schedule was created successfully.
    • When to capture: Immediately after clicking Save with a valid schedule string.
    • Expected text (example): Pipeline run schedule created for ‘Pipeline name.


  2. Fabric and Azure – Schedule artifact.
    • What to capture: The corresponding schedule or trigger is created in Microsoft Fabric or Azure Data Factory (ADF).
    • When to capture: After the CluedIn success message appears, open the target platform and navigate to the trigger or schedule details.
    • Fabric path (example): Workspace > Pipelines > pipeline of interest > Schedules > your schedule.
    • ADF path (example): Authoring > Triggers > trigger of interest > Schedule.

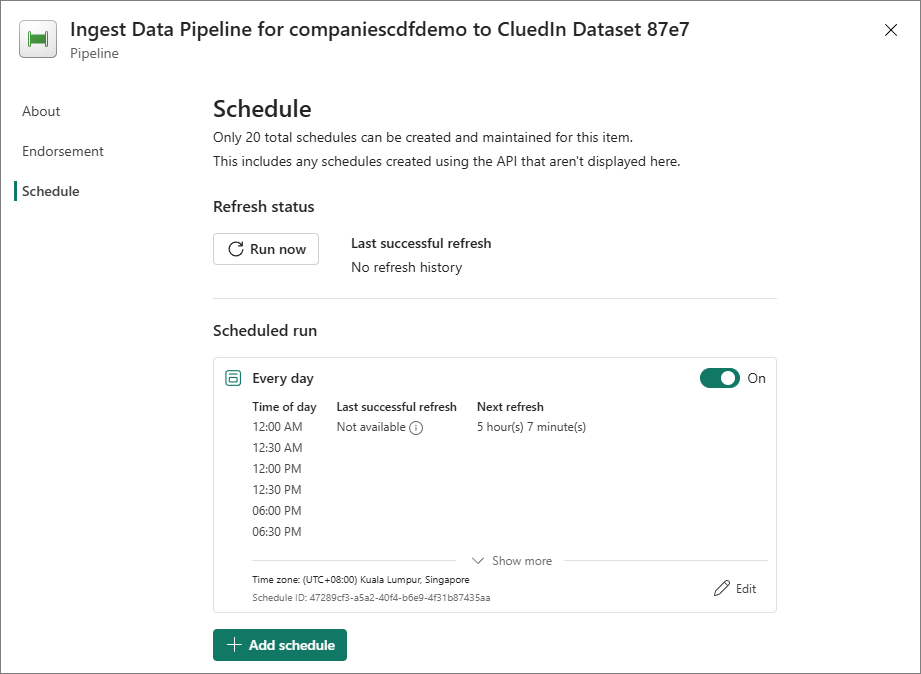

    Fabric example:

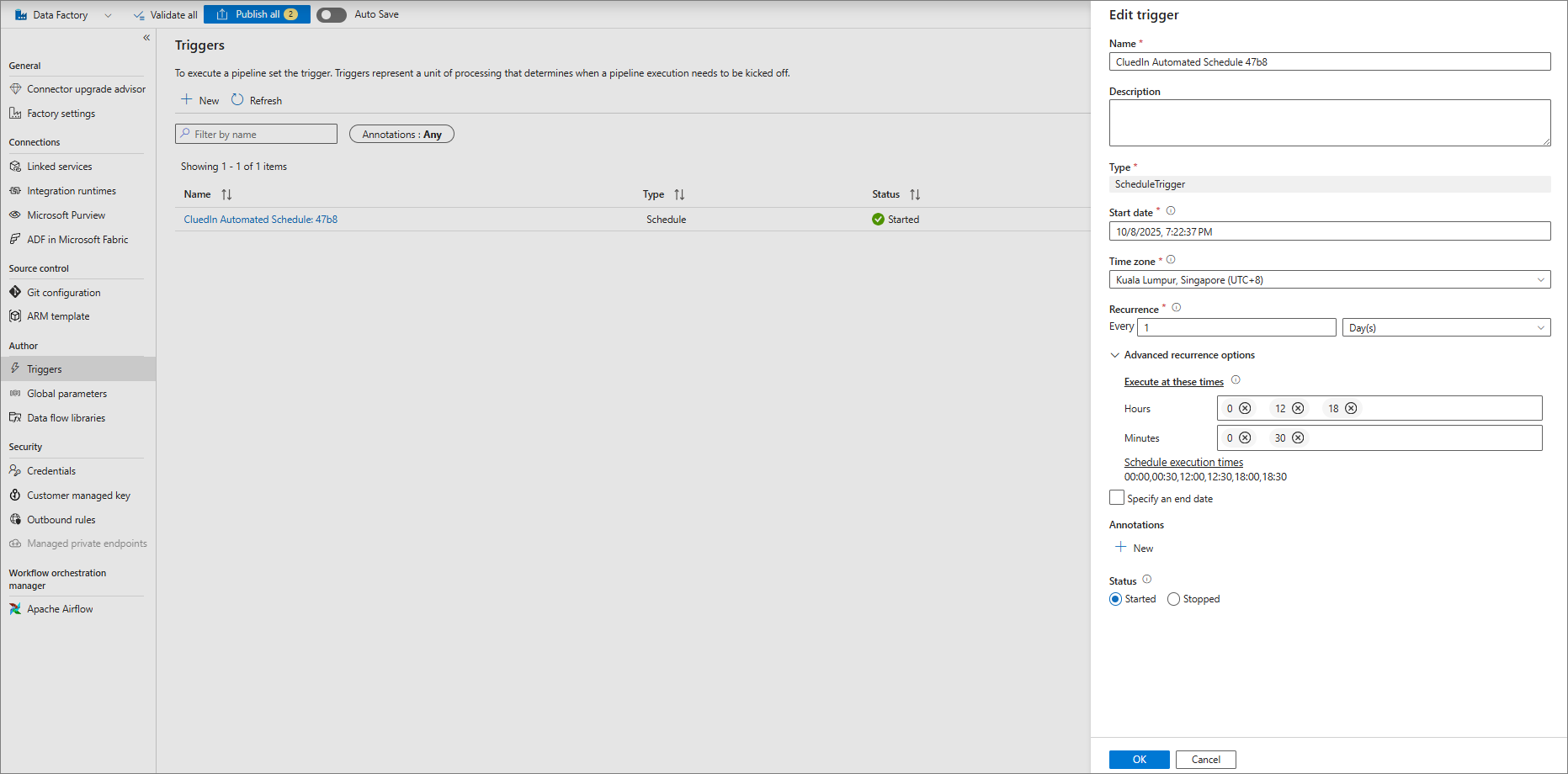

    ADF example:

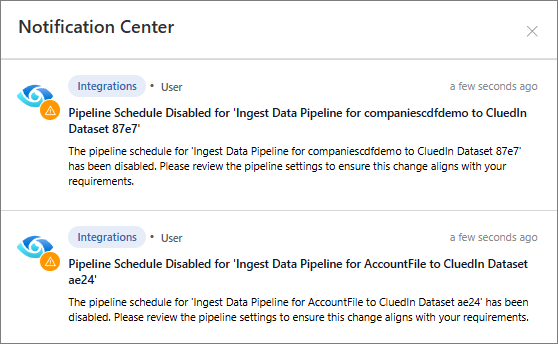

  3. CluedIn – Notification about schedule being disabled (toggle off).
    • What to capture: The in-app notification confirming that the schedule was disabled after turning the toggle off (or clearing the textbox and saving).
    • When to capture: Immediately after disabling the setting.
    • Expected text (example): Pipeline run schedule disabled.
